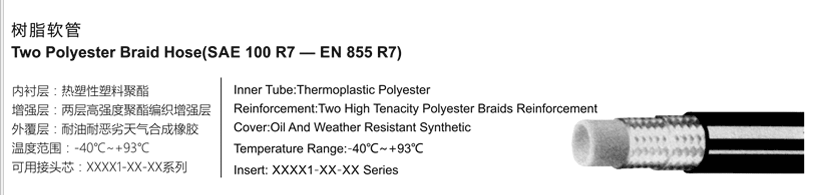

HYDRAULIC R7 Two Polyester Braid Hose(SAE 100 R7-EN 855 R7)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R7 Two Polyester Braid Hose(SAE 100 R7-EN 855 R7)
Product Detail
HYDRAULIC R7 Two Polyester Braid Hose(SAE 100 R7-EN 855 R7)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| R703 | 5 | -03 | 3/16 | 4.8 | 9.5 | 82.7 | 20.7 | 40 | 00018-03 |
| R704 | 6 | -04 | 1/4 | 6.4 | 11.9 | 75.8 | 19.0 | 50 | 00018-04 |
| R705 | 8 | -05 | 5/16 | 7.9 | 14.3 | 68.9 | 17.2 | 60 | 00018-05 |
| R706 | 10 | -06 | 3/8 | 9.5 | 16.5 | 62.0 | 15.5 | 75 | 00018-06 |
| R708 | 12 | -08 | 1/2 | 12.7 | 20.4 | 55.2 | 13.8 | 95 | 00018-08 |
