HYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)
Product Detail

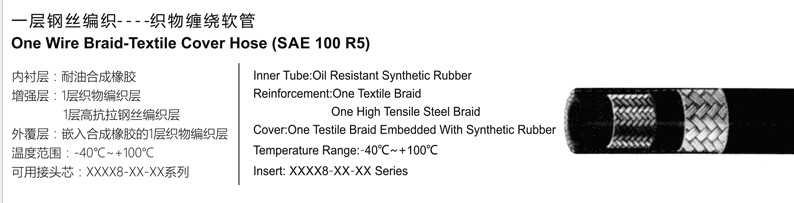

HYDRAULIC R5 One Wire Braid-Textile Cover Hose(SAE 100 R5)
| HOSE PART NO. | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| DASH | in | mm | mm | MPa | MPa | mm | ||
| R504 | -04 | 3/16 | 4.8 | 13.2 | 84.0 | 21.0 | 76 | 00518-04 |
| R505 | -05 | 1/4 | 6.4 | 14.8 | 84.0 | 21.0 | 86 | 00518-05 |
| R506 | -06 | 5/16 | 7.9 | 17.3 | 62.0 | 15.5 | 102 | 00518-06 |
| R508 | -08 | 13/32 | 10.3 | 19.5 | 56.0 | 14.0 | 117 | 00518-08 |
| R510 | -10 | 1/2 | 12.7 | 23.4 | 48.4 | 12.1 | 140 | 00518-10 |
| R512 | -12 | 5/8 | 15.9 | 27.4 | 41.2 | 10.3 | 165 | 00518-12 |
| R516 | -16 | 7/8 | 22.2 | 31.4 | 22.0 | 5.5 | 187 | 00518-16 |
| R520 | -20 | 1.1/8 | 28.6 | 38.1 | 17.2 | 4.3 | 229 | 00518-20 |
| R524 | -24 | 1.3/8 | 34.9 | 44.5 | 13.6 | 3.4 | 267 | 00518-24 |
| R532 | -32 | 1.13/16 | 46.0 | 56.4 | 9.6 | 2.4 | 337 | 00518-32 |
