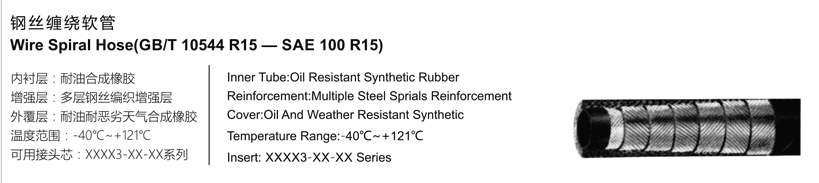

HYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)
Product Detail
HYDRAULIC R15 Wire Spiral Hose(GB/T 10544 R15-EN 856 R15)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| R1506 | 10 | -06 | 3/8 | 9.5 | 20.6 | 168 | 42 | 130 | 00621-06(R15) |
| R1508 | 12 | -08 | 1/2 | 12.7 | 23.8 | 168 | 42 | 180 | 00621-08(R15) |
| R1512 | 20 | -12 | 3/4 | 19.0 | 31.6 | 168 | 42 | 280 | 00621-12(R15) |
| R1516 | 25 | -16 | 1 | 25.4 | 38.6 | 168 | 42 | 300 | 00621-16(R15) |
| R1520 | 32 | -20 | 1.1/4 | 31.8 | 49.6 | 168 | 42 | 400 | 00621-20(R15) |
| R1524 | 40 | -24 | 1.1/2 | 38.1 | 56.5 | 168 | 42 | 500 | 00621-24(R15) |
