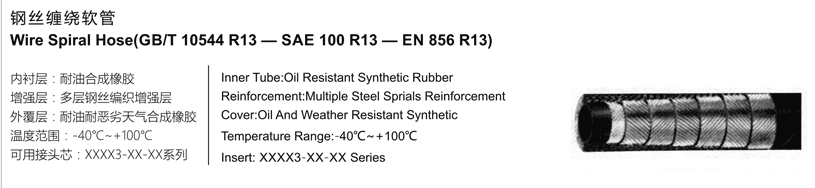

HYDRAULIC R13 Wire Spiral Hose(GB/T 10544 R13-EN 856 R13)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC R13 Wire Spiral Hose(GB/T 10544 R13-EN 856 R13)
Product Detail
HYDRAULIC R13 Wire Spiral Hose(GB/T 10544 R13-EN 856 R13)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| R1312 | 20 | -12 | 3/4 | 19.0 | 32.1 | 137.9 | 34.5 | 241 | 00621-12 |
| R1316 | 25 | -16 | 1 | 25.4 | 38.7 | 1379 | 34.5 | 305 | 00621-16 |
| R1320 | 32 | -20 | 1.1/4 | 31.8 | 49.8 | 137.9 | 34.5 | 419 | 00621-20 |
| R1324 | 40 | -24 | 1.1/2 | 38.1 | 57.3 | 137.9 | 34.5 | 508 | 00621-24 |
| R1332 | 50 | -32 | 2 | 50.8 | 71.8 | 137.9 | 34.5 | 635 | 00621-32 |
