HYDRAULIC DK METRIC FEMALE 60°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC DK METRIC FEMALE 60°CONE SEAT
Product Detail

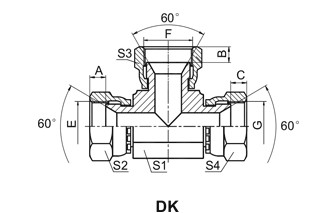

HYDRAULIC DK METRIC FEMALE 60°CONE SEAT
| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | G | A，B，C | S1 | S2，S3，S4 | |
| DK-14 | M14X1.5 | M14X1.5 | M14X1.5 | 10.5 | 11 | 19 |
| DK-16 | M16X1.5 | M16X1.5 | M16X1.5 | 9.3 | 14 | 22 |
| DK-18 | M18X1.5 | M18X1.5 | M18X1.5 | 11.5 | 16 | 24 |
| DK-22 | M22X1.5 | M22X1.5 | M22X1.5 | 14 | 19 | 27 |
| DK-24 | M24X1.5 | M24X1.5 | M24X1.5 | 15.1 | 22 | 32 |
| DK-30 | M30X1.5 | M30X1.5 | M30X1.5 | 18.3 | 27 | 36 |
| DK-33 | M33X1.5 | M33X1.5 | M33X1.5 | 21.3 | 30 | 41 |
| DK-36 | M36X1.5 | M36X1.5 | M36X1.5 | 20 | 33 | 46 |
| DK-42 | M42X1.5 | M42X1.5 | M42X1.5 | 18.8 | 36 | 50 |
