Hydraulic DIN Fittings ACCO-OG BARREL TEE UN、UNF THREAD ADJUSTABLESTUD ENDS WITH O-RING SEALING

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc . Hydraulic DIN Fittings can be used in system with Max 63Mpa .

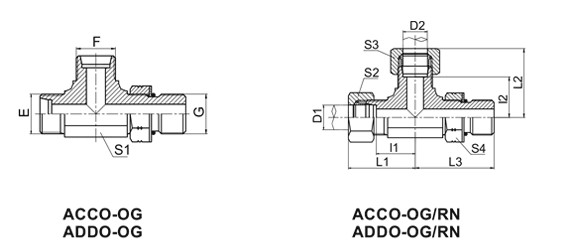

Drawing

Technical Data

PART NO.												THREAD																	TUBE O.D.													DIMENSIONS																																	MPa
												E,F									G								D1,D2													l1,l2						L1,L2					L3				S1						S2,S3					S4
ACCO-12-12-04OG												M12X1.5									7/16"X20								6													13						28					27.2				11						14					17							31.5  Light Series L
ACCO-14-14-06OG												M14X1.5									9/16"X18								8													15.5						30.5					31.8				14						17					19
ACCO-16-16-06OG												M16X1.5									9/16"X18								10													17.5						32.5					33.3				16						19					19
ACCO-18-18-08OG												M18X1.5									3/4"X16								12													19						34					37.5				19						22					24
ACCO-22-22-10OG												M22X1.5									7/8"X14								15													22						37					44				22						27					27
ACCO-26-26-12OG												M26X1.5									1.1/16"X12								18													25.5						42					51				27						32					32
ACCO-30-30-12OG												M30X2									1.1/16"X12								22													29.3						45.8					53.5				30						36					32							16  Light Series L
ACCO-36-36-16OG												M36X2									1.5/16"X12								28													33.3						49.8					57.5				36						41					41
ACCO-45-45-20OG												M45X2									1.5/8"X12								35													39.2						60.7					63				48						50					50
ADDO-14-14-04OG												M14X1.5									7/16"X20								6													17.5						32.5					30				14						17					17							63 Weight Series S
ADDO-16-16-06OG												M16X1.5									9/16"X18								8													18.7						33.7					33.3				16						19					19
ADDO-18-18-06OG												M18X1.5									9/16"X18								10													19.5						36					33.5				19						22					19
ADDO-20-20-08OG												M20X1.5									3/4"X16								12													19.5						36					37.5				19						24					24
ADDO-22-22-10OG												M22X1.5									7/8"X14								14													23						41					44				22						27					27
ADDO-24-24-10OG												M24X1.5									7/8"X14								16													24						42.5					46.5				24						30					27							40 Weight Series S
ADDO-30-30-12OG												M30X2									1.1/16"X12								20													28.3						49.8					53.5				30						36					32
ADDO-36-36-16OG												M36X2									1.5/16"X12								25													32.8						56.8					57.5				36						46					41
ADDO-42-42-20OG												M42X2									1.5/8"X12								30													36.2						62.7					59.5				41						50					50

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example ACCO-30-30-120G/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price：very competitive
3.MOQ: 300PCS
4. Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.Delivery: As general,we can guarantee the delivery within one month.

2.Port of loading: Ningbo or Shanghai
