Hydraulic DIN Fittings 6C9 90° ELBOW BULKHEAD FITTINGS

Send Inquiry

Product Description

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. Hydraulic DIN Fittings can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine.We are specialized in all kinds of Hydraulic DIN Fittings.Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Product Detail

Application


Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .


This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

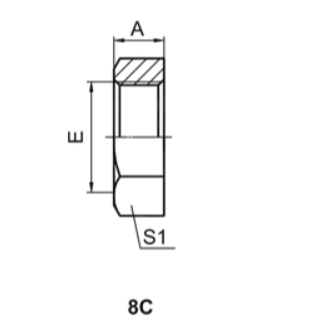

Drawing







Technical Data


PART  NO. THREAD  TUBE O.D.    DIMENSIONS  MPa
E F D1 D2 l1 l2 l3 L1 L2 S1 S2,S3 S4
6C9-12 M12X1.5 M12X1.5 6 6 27 12 14 42 27 12 14 17 31.5
Light series L
6C9-14 M14X1.5 M14X1.5 8 8 27 14 17 42 29 12 17 19
6C9-16 M16X1.5 M16X1.5 10 10 28 15 18 43 30 14 19 22
6C9-18 M18X1.5 M18X1.5 12 12 29 17 20 44 32 17 22 24
6C9-22 M22X1.5 M22X1.5 15 15 31 21 23 46 36 19 27 30
6C9-26 M26X1.5 M26X1.5 18 18 32.5 23.5 24 49 40 24 32 36
6C9-30 M30X2 M30X2 22 22 34.5 27.5 30 51 44 27 36 41 16
Light series L
6C9-36 M36X2 M36X2 28 28 35.5 30.5 34 52 47 36 41 46
6C9-45 M45X2 M45X2 35 35 36.5 34.5 39 58 56 41 50 55
6C9-52 M52X2 M52X2 42 42 36 40 43 59 63 50 60 65
6D9-14 M14X1.5 M14X1.5 6 6 29 16 17 44 31 12 17 19 63
Weight series S
6D9-16 M16X1.5 M16X1.5 8 8 29 17 18 44 32 14 19 22
6D9-18 M18X1.5 M18X1.5 10 10 29.5 17.5 20 46 34 17 22 24
6D9-20 M20X1.5 M20X1.5 12 12 30.5 21.5 21 47 38 17 24 27
6D9-22 M22X1.5 M22X1.5 14 14 32 22 23 50 40 19 27 30
6D9-24 M24X1.5 M24X1.5 16 16 31.5 24.5 24 50 43 24 30 32 40
Weight series S
6D9-30 M30X2 M30X2 20 20 33.5 26.5 30 55 48 27 36 41
6D9-36 M36X2 M36X2 25 25 35 30 34 59 54 36 46 46
6D9-42 M42X2 M42X2 30 30 37.5 35.5 39 64 62 41 50 50
6D9-52 M52X2 M52X2 38 38 37 41 43 68 72 50 60 65 31.5Weight seriesS

Note：In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.for example 6C9-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part no.,for example 6C9-30RN,order the adapter with lock nut and cutting ring and nut,insert suffix "LN/RN" after part no.,for example 6C9-30LN/RN.



Product Details


High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
