Hydraulic DIN Fittings 3C STRAIGHT TUBE ADAPTERS WITH SWIVEL NUT

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. When tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

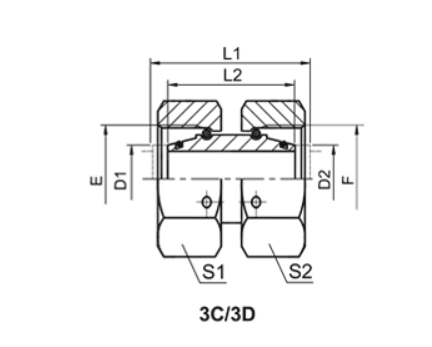

Drawing



Technical Data



PART NO.										THREAD																		TUBE O.D.																	DIMENSIONS																						MPa
										E,F																		D1,D2																	L1								L2						S1,S2
3C-12										M12X1.5																		6																	33								32						14								31.5 Light series L
3C-14										M14X1.5																		8																	33								32						17
3C-16										M16X1.5																		10																	34								33						19
3C-18										M18X1.5																		12																	34								33						22
3C-22										M22X1.5																		15																	39								38						27
3C-26										M26X1.5																		18																	41								39						32
3C-30										M30X2																		22																	44								42						36								16 Light series L
3C-36										M36X2																		28																	48								46						46
3C-45										M45X2																		35																	52								48						50
3C-52										M52X2																		42																	57								52						60
3D-14										M14X1.5																		6																	33								32						17								63 Weight series S
3D-16										M16X1.5																		8																	34								33						19
3D-18										M18X1.5																		10																	35								33						22
3D-20										M20X1.5																		12																	38								36						24
3D-22										M22X1.5																		14																	41								39						27
3D-24										M24X1.5																		16																	42								39						30								40 Weight series S
3D-30										M30X2																		20																	48								44						36
3D-36										M36X2																		25																	53								46						46
3D-42										M42X2																		30																	62								52						50
3D-52										M52X2																		38																	67								52						60								31.5 Weight series S

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
