Hydraulic DIN Fittings 1CI/1DI METRIC BANJO

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a
manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

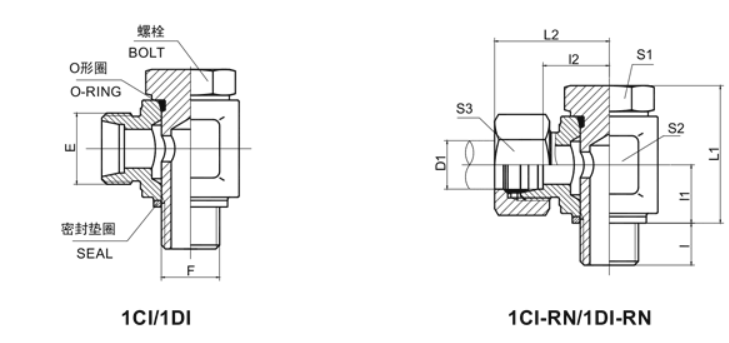

Drawing



Technical Data

PART NO.					THREAD												D1 TUBE O.D.								DIMENSIONS																												BOLT							O-RING										SEAL						MPa
					E					F															l			l1					L1				l2			L2				S1				S2				S3
1CI-12-10					M12X1.5					M10X1							6								8			11					25.5				12			27				14				17				14	700M-10I							O08.1X1.6										ZHD-10						31.5 Light series L
1CI-14-12					M14X1.5					M12X1.5							8								12			14.5					33				14.5			29				17				22				17	700M-12I							O09.3X2.4										ZHD-12
1CI-16-14					M16X1.5					M14X1.5							10								12			14.5					33				16.5			31				19				24				19	700M-14I							O11.3X2.4										ZHD-14
1CI-18-16					M18X1.5					M16X1.5							12								12			17					39				19			34				22				27				22	700M-16I							O13.3X2.4										ZHD-16
1CI-22-18					M22X1.5					M18X1.5							15								12			18.5					42				21.5			37				24				30				27	700M-18I							O15.3X2.4										ZHD-18
1CI-26-22					M26X1.5					M22X1.5							18								14			21.5					49				22			38				27				32				32	700M-22I							O19.3X2.4										ZHD-22
1CI-30-26					M30X2					M26X1.5							22								16			24					56				28.5			45				36				41				36	700M-26I							O23.5X3.0										ZHD-27						16 Light series L
1CI-36-33					M36X2					M33X2							28								18			30.5					71				33			50				41				50				41	700M-33I							O29.5X3.0										ZHD-33
1CI-45-42					M45X2					M42X2							35								20			35.5					82				37			59				50				60				50	700M-42I							O38.5X3.0										ZHD-42
1CI-52-48					M52X2					M48X2							42								22			40.5					93				41.5			64				55				70				60	700M-48I							O44.5X3.0										ZHD-48
1DI-14-12					M14X1.5					M12X1.5							6								12			14.5					33				16.5			31				17				22				17	700M-12I							O09.3X2.4										ZHD-12						63 Weight series S
1DI-16-14					M16X1.5					M14X1.5							8								12			14.5					33				17.5			32				19				24				19	700M-14I							O11.3X2.4										ZHD-14
1DI-18-16					M18X1.5					M16X1.5							10								12			17					39				19.5			36				22				27				22	700M-16I							O13.3X2.4										ZHD-16
1DI-20-18					M20X1.5					M18X1.5							12								12			18.5					42				21			37				24				30				24	700M-18I							O15.3X2.4										ZHD-18
1DI-22-20					M22X1.5					M20X1.5							14								14			20					46				23.5			41				27				32				27	700M-20I							O17.3X2.4										ZHD-20
1DI-24-22					M24X1.5					M22X1.5							16								14			21.5					49				23			41				27				32				30	700M-22I							O19.3X2.4										ZHD-22
1DI-30-27					M30X2					M27X2							20								16			24					56				27.5			49				36				41				36	700M-27I							O23.5X3.0										ZHD-27						40 Weight series S
1DI-36-33					M36X2					M33X2							25								18			30.5					71				32.5			57				41				50				46	700M-33I							O29.5X3.0										ZHD-33
1DI-42					M42X2					M42X2							30								20			35.5					82				38			65				50				60				50	700M-42I							O38.5X3.0										ZHD-42
1DI-52-48					M52X2					M48X2							38								22			40.5					93				42.5			73				55				70				60	700M-48I							O44.5X3.0										ZHD-48

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our part no.,for example 1D1-36-33RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
