Hydraulic DIN Fittings 1CH9-OG /1DH9-OG 90° ELBOW METRIC THREAD ADJUSTABLE STUD ENDS ISO 6149

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

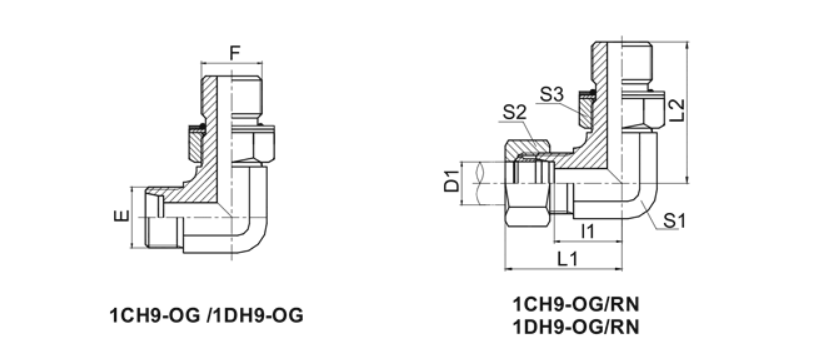

Drawing



Technical Data

PART NO.										THREAD															TUBE O.D.								O RING											DIMENSIONS																															MPa
										E								F																										l1					L1				L2						S1					S2						S3
1CH9-12-10OG										M12X1.5								M10X1							6								O08.1X1.6											13					28				26.5						11					14						14					31.5 Light series L
1CH9-14-12OG										M14X1.5								M12X1.5							8								O09.3X2.4											15.5					30.5				32						14					17						17
1CH9-16-14OG										M16X1.5								M14X1.5							10								O11.3X2.4											17.5					32.5				34						16					19						19
1CH9-18-16OG										M18X1.5								M16X1.5							12								O13.3X2.4											19					34				36						19					22						22
1CH9-22-18OG										M22X1.5								M18X1.5							15								O15.3X2.4											22					37				39.5						22					27						24
1CH9-26-22OG										M26X1.5								M22X1.5							18								O19.3X2.4											25.5					42				43.5						27					32						27
1CH9-30-27OG										M30X2								M27X2							22								O23.5X3.0											29.3					45.8				50						30					36						32					16 Light seriesL
1CH9-36-33OG										M36X2								M33X2							28								O29.5X3.0											33.3					49.8				54						36					41						41
1DH9-14-12OG										M14X1.5								M12X1.5							6								O09.3X2.4											17.5					32.5				32						14					17						17					63 Weight series S
1DH9-16-14OG										M16X1.5								M14X1.5							8								O11.3X2.4											18.7					33.7				34						16					19						19
1DH9-18-16OG										M18X1.5								M16X1.5							10								O13.3X2.4											19.5					36				36						19					22						22
1DH9-20-18OG										M20X1.5								M18X1.5							12								O15.3X2.4											19.5					36				37						19					24						24
1DH9-22-20OG										M22X1.5								M20X1.5							14								O17.3X2.4											23					41				40						22					27						27
1DH9-24-22OG										M24X1.5								M22X1.5							16								O19.3X2.4											24					42				37.5						24					30						27
1DH9-30-27OG										M30X2								M27X2							20								O23.5X3.0											28.3					49.8				50						30					36						32					40 Weight series S
1DH9-36-33OG										M36X2								M33X2							25								O29.5X3.0											32.8					56.8				54						36					46						41
1DH9-42OG										M42X2								M42X2							30								O38.5X3.0											36.2					62.7				57.2						41					50						50

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our part no.,for example 1DH9-20-180-G/RN
