Product Description

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC BB BSP MALE 60°SEAT / BSP FEMALE 60°CONE BRANCH TEE

Product Detail

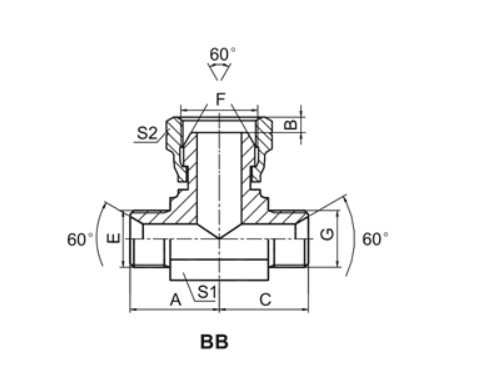

HYDRAULIC  BB BSP MALE 60°SEAT / BSP FEMALE 60°CONE BRANCH TEE




PART NO.  THREAD    DIMENSIONS
E F G A B C S1 S2
BB-02 G1/8"X28 G1/8"X28 G1/8"X28 19.8 5.5 19.8 11 14
BB-04 G1/4"X19 G1/4"X19 G1/4"X19 24.5 5.5 24.5 14 19
BB-06 G3/8"X19 G3/8"X19 G3/8"X19 27.5 6.3 27.5 16 22
BB-08 G1/2"X14 G1/2"X14 G1/2"X14 34.5 7.5 34.5 22 27
BB-12 G3/4"X14 G3/4"X14 G3/4"X14 40 10.9 40 27 32
BB-16 G1"X11 G1"X11 G1"X11 46 11.7 46 33 41
BB-20 G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 50.5 11 50.5 41 50
BB-24 G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 57.5 13 57.5 48 55
BB-32 G2"X11 G2"X11 G2"X11 72.5 16 72.5 63 70
