HYDRAULIC 90011 DOUBLE CONNECTOR
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 90011 DOUBLE CONNECTOR
Product Detail

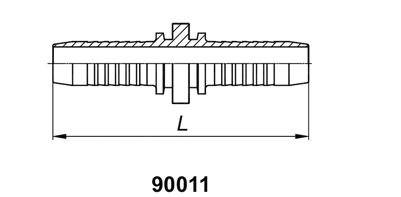

HYDRAULIC 90011 DOUBLE CONNECTOR
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 90011-04 | 6 | 04 | 69 |
| 90011-05 | 8 | 05 | 69 |
| 90011-06 | 10 | 06 | 73 |
| 90011-08 | 12 | 08 | 77 |
| 90011-10 | 16 | 10 | 83 |
| 90011-12 | 20 | 12 | 93 |
| 90011-16 | 25 | 16 | 114 |
| 90011-20 | 32 | 20 | 132 |
| 90011-24 | 40 | 24 | 162 |
| 90011-32 | 50 | 32 | 170 |
Note:For wire braid hose.
