HYDRAULIC 87943 45°SAE FLANGE 9000 PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87943 45°SAE FLANGE 9000 PSI
Product Detail
HYDRAULIC 87943 45°SAE FLANGE 9000 PSI

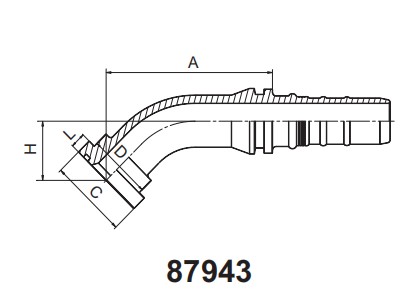

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87943-12-12 | 3/4" | 20 | 12 | 92.6 | 41.3 | 31.7 | 35.6 | 14.3 |
| 87943-16-12 | 1" | 20 | 12 | 93.7 | 47.6 | 38 | 36.7 | 14.3 |
| 87943-16-16 | 1" | 25 | 16 | 103.9 | 47.6 | 38 | 37.5 | 14.3 |
| 87943-20-16 | 1.1/4" | 25 | 16 | 104.9 | 54 | 43 | 38.2 | 14.3 |
| 87943-20-20 | 1.1/4" | 32 | 20 | 117.3 | 54 | 43 | 42.3 | 14.3 |
| 87943-24-20 | 1.1/2" | 32 | 20 | 118 | 63.5 | 50.8 | 43 | 14.3 |
| 87943-24-24 | 1.1/2" | 40 | 24 | 132.5 | 63.5 | 50.8 | 46.9 | 14.3 |
