HYDRAULIC 87643 45°SAE FLANGE 6000 PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87643 45°SAE FLANGE 6000 PSI
Product Detail
HYDRAULIC 87643 45°SAE FLANGE 6000 PSI

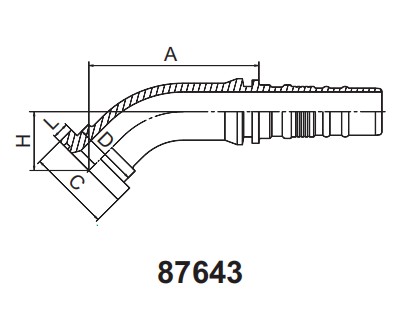

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87643-12-12 | 3/4" | 20 | 12 | 88.7 | 41.3 | 32 | 31.8 | 8.76 |
| 87643-16-12 | 1" | 20 | 12 | 90.8 | 47.6 | 38 | 33.2 | 9.53 |
| 87643-16-16 | 1" | 25 | 16 | 101.1 | 47.6 | 38 | 34.7 | 9.53 |
| 87643-20-16 | 1.1/4" | 25 | 16 | 103.9 | 54 | 44 | 37.5 | 10.29 |
| 87643-20-20 | 1.1/4" | 32 | 20 | 116.6 | 54 | 44 | 41.5 | 10.29 |
| 87643-24-20 | 1.1/2" | 32 | 20 | 120.1 | 63.5 | 51 | 45.1 | 12.57 |
| 87643-24-24 | 1.1/2" | 40 | 24 | 134.6 | 63.5 | 51 | 49 | 12.57 |
| 87643-32-24 | 2" | 40 | 24 | 140.2 | 79.4 | 67 | 54.7 | 12.57 |
| 87643-32-32 | 2" | 50 | 32 | 163.3 | 79.4 | 67 | 61.9 | 12.57 |
