HYDRAULIC 87611-RW SAE FLANGE 6000 PSI (ISO 12151-3—SAE J516)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87611-RW SAE FLANGE 6000 PSI (ISO 12151-3—SAE J516)
Product Detail
HYDRAULIC 87611-RW SAE FLANGE 6000 PSI (ISO 12151-3—SAE J516)

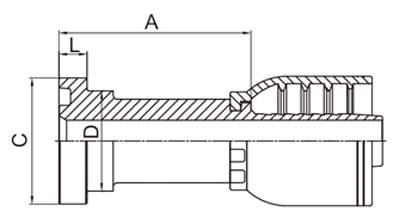

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87611-08-08RW | 1/2" | 12 | 08 | 47 | 31.7 | 24 | 7.75 |
| 87611-12-10RW | 3/4" | 16 | 10 | 51 | 41.3 | 32 | 8.76 |
| 87611-12-12RW | 3/4" | 20 | 12 | 51 | 41-3 | 32 | 8.76 |
| 87611-16-12RW | 1" | 20 | 12 | 56 | 476 | 38 | 9.53 |
| 87611-16-16RW | 1" | 25 | 16 | 57 | 47.6 | 38 | 9.53 |
| 87611-16-20RW | 1" | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| 87611-20-16RW | 1.1/4" | 25 | ia | 65 | 54 | 44 | 10.29 |
| 87611-20-20RW | 1.1/4" | 32 | 20 | 66 | 54 | 44 | 10.29 |
| 87611-24-20RW | 1.1/2" | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| 87611-24-24RW | 1.1/2" | 40 | 24 | 75 | 63.5 | 51 | 12.57 |
| 87611-32-24RW | 2" | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| 87911-32-32RW | 2" | 50 | 32 | 85 | 79.4 | 67 | 12.57 |
