HYDRAULIC 87398D-R5 90°SAE FLANGE 3000PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 887398D-R5 90°SAE FLANGE 3000PSI
Product Detail

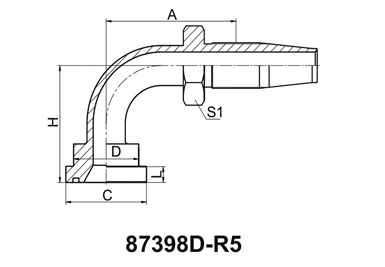

HYDRAULIC 87398D-R5 90°SAE FLANGE 3000PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
| DN | DASH | A | C | D | H | L | S1 | ||
| 87398D-08-08(R5) | 1/2" | 12 | 08 | 53 | 30.2 | 24 | 47 | 6.73 | 27 |
| 87398D-12-10(R5) | 3/4" | 16 | 10 | 66.5 | 38.1 | 32 | 52.5 | 6.73 | 32 |
| 87398D-12-12(R5) | 3/4" | 20 | 12 | 79.5 | 38.1 | 32 | 62 | 6.73 | 32 |
| 87398D-16-12(R5) | 1" | 20 | 12 | 79.5 | 44.4 | 38 | 62 | 8 | 32 |
| 87398D-16-16(R5) | 1" | 25 | 16 | 86.5 | 44.4 | 38 | 67.5 | 8 | 41 |
| 87398D-20-16(R5) | 1.1/4" | 25 | 16 | 86.5 | 50.8 | 43 | 67.5 | 8 | 41 |
| 87398D-20-20(R5) | 1.1/4" | 32 | 20 | 100.5 | 50.8 | 43 | 78.5 | 8 | 50 |
| 87398D-24-20(R5) | 1.1/2" | 32 | 20 | 100.5 | 60.3 | 50 | 80.5 | 8 | 50 |
| 87398D-24-24(R5) | 1.1/2" | 40 | 24 | 108 | 60.3 | 50 | 94 | 8 | 55 |
| 87398D-32-24(R5) | 2" | 40 | 24 | 108 | 71.4 | 62 | 94 | 9.53 | 55 |
| 87398D-32-32(R5) | 2" | 50 | 32 | 128.8 | 71.4 | 62 | 114.3 | 9.53 | 70 |
