HYDRAULIC 87343 45°SAE FLANGE 3000 PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87343 45°SAE FLANGE 3000 PSI
Product Detail

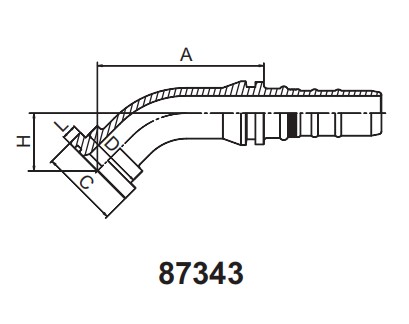

HYDRAULIC 87343 45°SAE FLANGE 3000 PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87343-12-12 | 3/4" | 20 | 12 | 85.8 | 38.1 | 31.7 | 28.9 | 7 |
| 87343-16-12 | 1" | 20 | 12 | 85.8 | 44.4 | 38 | 28.9 | 8 |
| 87343-16-16 | 1" | 25 | 16 | 96.1 | 44.4 | 38 | 29.7 | 8 |
| 87343-20-16 | 1.1/4" | 25 | 16 | 96.1 | 50.8 | 43 | 29.7 | 8 |
| 87343-20-20 | 1.1/4" | 32 | 20 | 108.8 | 50.8 | 43 | 33.8 | 8 |
| 87343-24-20 | 1.1/2" | 32 | 20 | 110.2 | 60.3 | 50 | 35.2 | 8 |
| 87343-24-24 | 1.1/2" | 40 | 24 | 123.7 | 60.3 | 50 | 39.1 | 8 |
| 87343-32-24 | 2" | 40 | 24 | 123.7 | 71-4 | 62 | 39.1 | 9.53 |
| 87343-32-32 | T | 50 | 32 | 148.3 | 71.4 | 62 | 46.3 | 9.53 |
