HYDRAULIC 87313 SAE FLANGE 3000 PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87313 SAE FLANGE 3000 PSI
Product Detail

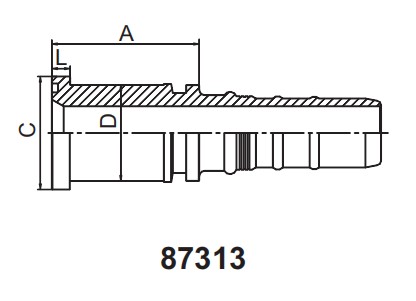

HYDRAULIC 87313 SAE FLANGE 3000 PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87313-12-12 | 3/4" | 20 | 12 | 50 | 38.1 | 31.7 | 7 |
| 87313-16-12 | 1" | 20 | 12 | 54 | 44.4 | 38 | 8.2 |
| 87313-16-16 | 1" | 25 | 16 | 54.4 | 44.4 | 38 | 8.2 |
| 87313-20-16 | 1.1/4" | 25 | 16 | 59.4 | 50.8 | 43 | 8.2 |
| 87313-20-20 | 1.1/4" | 32 | 20 | 65.8 | 50.8 | 43 | 8.2 |
| 87313-24-20 | 1.1/2" | 32 | 20 | 71.8 | 60.3 | 50 | 8.2 |
| 87313-24-24 | 1.1/2" | 40 | 24 | 72.2 | 60.3 | 50 | 8.2 |
| 87313-32-24 | 2" | 40 | 24 | 74.2 | 714 | 62 | 9.8 |
| 87313-32-32 | 2" | 50 | 32 | 78.5 | 71.4 | 62 | 9.8 |
