HYDRAULIC 87311-RW SAE FLANGE 3000 PSI (ISO 12151-3—SAE J516)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87311-RW SAE FLANGE 3000 PSI (ISO 12151-3—SAE J516)
Product Detail
HYDRAULIC 87311-RW SAE FLANGE 3000 PSI (ISO 12151-3—SAE J516)

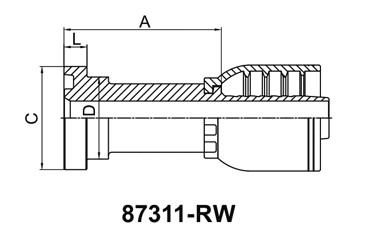

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87311-08-08RW | 1/2" | 12 | 08 | 46 | 30.2 | 24 | 6.73 |
| 87311-12-08RW | 3/4" | 12 | 08 | 47 | 38.1 | 317 | 6.73 |
| 87311-12-10RW | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-12RW | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-16RW | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87311-16-12RW | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87311-16-16RW | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87311-16-20RW | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87311-20-16RW | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87311-20-20RW | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87311-24-20RW | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87311-24-24RW | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87311-32-24RW | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87311-32-32RW | 2" | 50 | 32 | 70 | 71-4 | 62 | 9.53 |
| 87311-40-40RW | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
NOTE:
1. For use with braided hoses.
2. If with spiral hoses,hose fitting series number is 87312-XX-XXRW.
