JIS GAS MALE 60°CONE BULKHEAD 6S

Send Inquiry

Product Description

We offering JIS gas male bulkhead fittings.The main hydraulic fitting material is carbon steel. Alternative materials including free cutting steel, stainless steel, brass, aluminum alloy and others are available. And we can supply all kinds of forging parts make special by customer's requirements.

Product Detail

JIS GAS MALE 60°CONE BULKHEAD 6S

Japanese Industrial Standard JIS 300 Flare(JIS GAS MALE BULKHEAD)

The male half has a 30° seat with a straight thread, while the female has a 300 seat with a straight thread as well. This connection and the 37° Flare are alike, however it's 30° seat and BSPP-like thread dimensions make it different from the American 37° Flare.

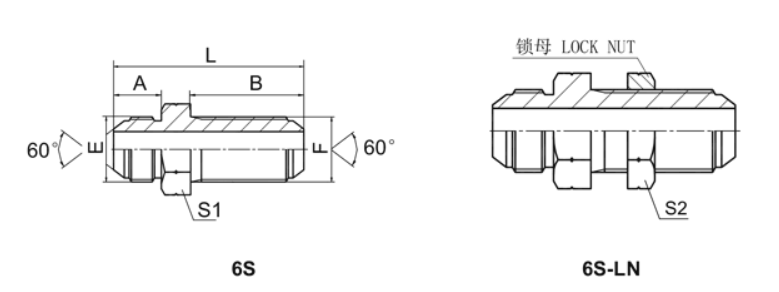

PART NO.	THREAD		DIMENSIONS
	E	F	A	B	L	S1	S2
6S-04	G1/4"X19	G1/4"X19	16	32	56	19	19
6S-06	G3/8"X19	G3/8"X19	18	36	62	22	22
6S-08	G1/2"X14	G1/2"X14	20	40	70	27	27
6S-12	G3/4"X14	G3/4"X14	22	41	74	32	32
6S-16	G1"X11	G1"X11	24	45	88	41	41

Note: In case if you are interested to order in complete set with lock nut, it is necessary to insert suffix“LN” after our part no., for example 6S-16LN,The lock nut no.is 8B.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1. Delivery:As general,we can guarantee the delivery within one month.

2. Port of loading: Ningbo or Shanghai

3. Samples Fee: We can offord the samples fee.
