HYDRAULIC 6F ORFS MALE O-RING BULKHEAD
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 6F ORFS MALE O-RING BULKHEAD
Product Detail

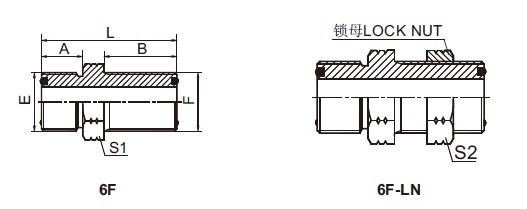

HYDRAULIC 6F ORFS MALE O-RING BULKHEAD
| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | E END | F END | A | B | L | S1 | S2 | |
| 6F-04 | 9/16"X18 | 9/16"X18 | O011 | O011 | 9.8 | 31.5 | 48.2 | 22 | 22 |
| 6F-06 | 11/16"X16 | 11/16"X16 | O012 | O012 | 11.2 | 34 | 53.2 | 27 | 27 |
| 6F-08 | 13/16"X16 | 13/16"X16 | O014 | O014 | 12.8 | 36.5 | 58.3 | 30 | 30 |
| 6F-10 | 1"X14 | 1"X14 | O016 | O016 | 15.5 | 40.6 | 66.6 | 36 | 36 |
| 6F-12 | 1.3/16"X12 | 1.3/16"X12 | O018 | O018 | 17 | 41.7 | 69.2 | 38 | 38 |
| 6F-16 | 1.7/16"X12 | 1.7/16"X12 | O021 | O021 | 17.5 | 42.2 | 70.2 | 46 | 46 |
| 6F-20 | 1.11/16"X12 | 1.11/16"X12 | O025 | O025 | 17.5 | 42.2 | 70.2 | 50 | 50 |
| 6F-24 | 2"X12 | 2"X12 | O029 | O029 | 17.5 | 42.2 | 70.2 | 60 | 60 |
Note: In case if you are interested to order the adapter with lock nut,please insert suffix “LN”after our part no.,for example 6F9-16LN. The lock nut no. is 8F.
