HYDRAULIC 60011 MT STAPLE-LOK MALE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 60011 MT STAPLE-LOK MALE
Product Detail

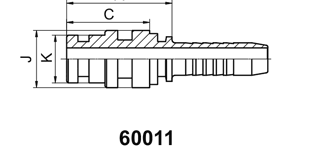

HYDRAULIC 60011 MT STAPLE-LOK MALE
| PART NO. | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | c | J | K | |
| 60011-04-04 | 6 | 04 | 31 | 25 | 15 | 11 |
| 60011-05-05 | 8 | 05 | 33.5 | 26 | 18 | 13 |
| 60011-06-06 | 10 | 06 | 33 | 26 | 18 | 15 |
| 60011-08-06 | 10 | 06 | 33.5 | 26 | 22 | 18 |
| 60011-08-08 | 12 | 08 | 34 | 26 | 22 | 18 |
| 60011-10-10 | 16 | 10 | 39 | 30 | 25 | 20 |
| 60011-12-12 | 20 | 12 | 40.5 | 31 | 28 | 24 |
| 60011-16-14 | 22 | 14 | 41 | 31 | 35 | 30 |
| 60011-16-16 | 25 | 16 | 42 | 31 | 35 | 30 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 60012-XX-XX.
