Product Description

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5JT9 90° JIC MALE 74° CONE/BSPT FEMALE

Product Detail

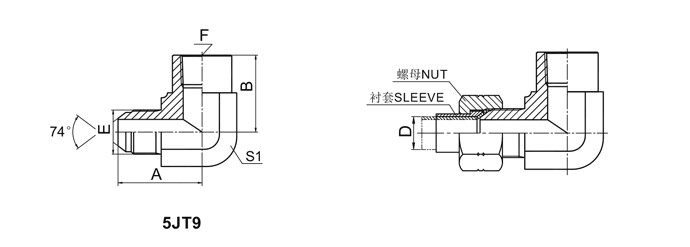

HYDRAULIC 5JT9 90° JIC MALE 74° CONE/BSPT FEMALE


 PART NO. THREAD DIMENSIONS
E F A B S1
5JT9-04-02 7/16"x20 Rc1/8"X28 27.5 20 16
5JT9-04 7/16"x20 Rc1/4"X19 30 25 19
5JT9-05-04 1/2"X20 Rc1/4"X19 30 25 19
5JT9-06 9/16"X18 Rc3/8"X19 33.5 27 24
5JT9-06-04 9/16"X18 Rc1/4"X19 30.5 25 19
5JT9-08 3/4"X16 Rc1/2"X14 39.5 31.5 30
5JT9-08-06 3/4"X16 Rc3/8"X19 36 27 24
5JT9-10-08 7/8"X14 Rc1/2"X14 42.5 31.5 30
5JT9-12 1.1/16"X12 Rc3/4"X14 48 37 33
5JT9-12-08 1.1/16"X12 Rc1/2"X14 46.2 31.5 30
5JT9-16 1.5/16"X12 Rc1"X11 54 43 41
5JT9-20 1.5/8"X12 Rc1.1/4"X11 62 46 50
5JT9-24 1.7/8"X12 Rc1.1/2"X11 74.5 55 63
Note: Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
