HYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE
Product Detail

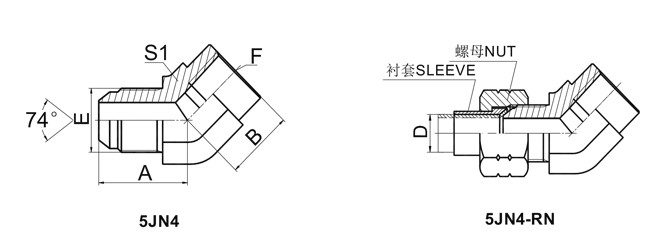

HYDRAULIC 5JN4 45°JIC MALE 74°CONE/NPT FEMALE
| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 5JN4-04 | 7/16"X20 | Z1/4"X18 | 23 | 20 | 19 |
| 5JN4-06-04 | 9/16"X18 | Z1/4"X18 | 24 | 20 | 19 |
| 5JN4-06 | 9/16"X18 | Z3/8"X18 | 26 | 19 | 24 |
| 5JN4-08-06 | 3/4"X16 | Z3/8"X18 | 29.5 | 19 | 24 |
| 5JN4-08 | 3/4"X16 | Z1/2"X14 | 29.5 | 28 | 30 |
| 5JN4-10-08 | 7/8"X14 | Z1/2"X14 | 33 | 28 | 30 |
| 5JN4-12 | 1.1/16"X12 | Z3/4"X14 | 37.5 | 30 | 33 |
| 5JN4-14-12 | 1.3/16"X12 | Z3/4"X14 | 38 | 30 | 33 |
| 5JN4-16 | 1.5/16"X12 | Z1"X11.5 | 42 | 37.5 | 41 |
| 5JN4-20 | 1.5/8"X12 | Z1.1/4"X11.5 | 46 | 30 | 48 |
| 5JN4-24 | 1.7/8"X12 | Z1.1/2"X11.5 | 58 | 36 | 63 |
Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
