HYDRAULIC 5B9 90° ELBOW BSP MALE 60° SEAT / BSP FEMALE ISO 1179
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5B9 90° ELBOW BSP MALE 60° SEAT / BSP FEMALE ISO 1179
Product Detail

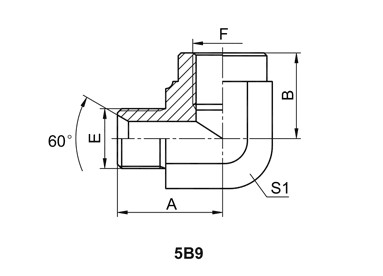

HYDRAULIC 5B9 90° ELBOW BSP MALE 60° SEAT / BSP FEMALE ISO 1179
| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 5B9-02 | G1/8"X28 | G1/8"X28 | 22.5 | 20 | 16 |
| 5B9-04 | G1/4"X19 | G1/4"X19 | 25.5 | 22 | 19 |
| 5B9-06 | G3/8"X19 | G3/8"X19 | 30.5 | 26 | 24 |
| 5B9-08 | G1/2"X14 | G1/2"X14 | 39 | 31 | 30 |
| 5B9-12 | G3/4"X14 | G3/4"X14 | 43.5 | 37 | 33 |
| 5B9-16 | G1"X11 | G1"X11 | 50.5 | 43 | 41 |
| 5B9-20 | G1.1/4"X11 | G1.1/4"X11 | 55 | 46 | 50 |
