HYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)
Product Detail

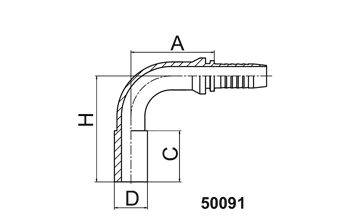

HYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)
| PART NO. | TUBEO.D. | HOSE BORE | DIMENSIONS | NOTE | |||
| DN | DASH | A | C | H | |||
| 50091-06-03 | 6 | 5 | 03 | 26.5 | 22 | 45 | Light Series |
| 50091-06-04 | 6 | 6 | 04 | 30 | 22 | 48 | |
| 50091-08-05 | 8 | 8 | 05 | 34 | 24 | 55.5 | |
| 50091-08-06 | 8 | 10 | 06 | 35.8 | 24 | 57.8 | |
| 50091-10-05 | 10 | 8 | 05 | 34 | 23 | 53 | |
| 50091-10-06 | 10 | 10 | 06 | 35.3 | 23 | 55.3 | |
| 50091-12-06 | 12 | 10 | 06 | 35.3 | 23 | 59.8 | |
| 50091-12-08 | 12 | 12 | 08 | 41 | 23 | 67 | |
| 50091-15-06 | 15 | 10 | 06 | 35.8 | 25 | 59.8 | |
| 50091-15-08 | 15 | 12 | 08 | 41 | 25 | 65 | |
| 50091-18-08 | 18 | 12 | 08 | 41 | 26 | 68.5 | |
| 50091-18-10 | 18 | 16 | 10 | 56.5 | 26 | 73 | |
| 50091-22-10 | 22 | 16 | 10 | 56.5 | 28 | 76.5 | |
| 50091-22-12 | 22 | 20 | 12 | 65.5 | 28 | 86 | |
| 50091-22-16 | 22 | 25 | 16 | 76.7 | 28 | 91.5 | |
| 50091-28-16 | 28 | 25 | 16 | 76.7 | 30 | 95.5 | |
| 50091-35-20 | 35 | 32 | 20 | 91.5 | 36 | 112.5 | |
| 50091-08-04 | 8 | 6 | 04 | 30 | 24 | 52.5 | Heavy Series |
| 50091-10-04 | 10 | 6 | 04 | 30 | 26 | 53 | |
| 50091-12-04 | 12 | 6 | 04 | 30 | 26 | 57.5 | |
| 50091-12-05 | 12 | B | 05 | 33 | 26 | 60.5 | |
| 50091-14-06 | 14 | 10 | 06 | 35.3 | 29 | 63.8 | |
| 50091-14-08 | 14 | 12 | 08 | 41 | 29 | 69 | |
| 50091-14-12 | 14 | 20 | 12 | 66.2 | 29 | 83 | |
| 50091-16-08 | 16 | 12 | 08 | 42 | 30 | 73 | |
| 50091-16-10 | 16 | 16 | 10 | 56.5 | 30 | 77.5 | |
| 50091-20-10 | 20 | 16 | 10 | 56.5 | 36 | 84.5 | |
| 50091-20-12 | 20 | 20 | 12 | 65.5 | 36 | 95.5 | |
| 50091-25-12 | 25 | 20 | 12 | 65.5 | 40 | 98 | |
| 50091-25-16 | 25 | 25 | 16 | 76.7 | 40 | 103.5 | |
| 50091-30-16 | 30 | 25 | 16 | 78 | 40 | 109.5 | |
| 50091-30-20 | 30 | 32 | 20 | 91.5 | 44 | 120.5 | |
| 50091-38-16 | 38 | 25 | 16 | 76.7 | 50 | 115.5 | |
| 50091-38-20 | 38 | 32 | 20 | 91.5 | 50 | 126.5 | |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 50092-XX-XX.
