HYDRAULIC 4SH Wire Spiral Hose(GB/T 10544 4SH-EN 856 4SH)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4SH Wire Spiral Hose(GB/T 10544 4SH-EN 856 4SH)
Product Detail

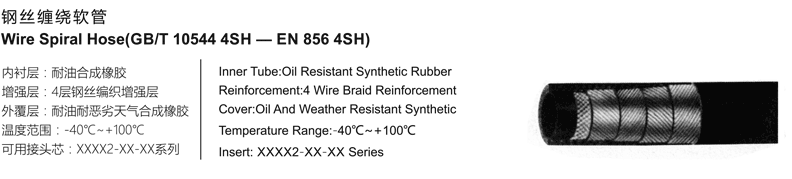

HYDRAULIC 4SH Wire Spiral Hose(GB/T 10544 4SH-EN 856 4SH)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 4SH12 | 19 | -12 | 3/4 | 19.0 | 32.2 | 168 | 42 | 280 | 00400-12 |
| 4SH16 | 25 | -16 | 1 | 25.4 | 38.7 | 152 | 38 | 340 | 00400-16 |
| 4SH20 | 32 | -20 | 1.1/4 | 31.8 | 45.5 | 130 | 32.5 | 460 | 00401-20 |
| 4SH24 | 40 | -24 | 1.1/2 | 38.1 | 53.5 | 116 | 29 | 560 | 00401-24 |
| 4SH32 | 50 | -32 | 2 | 50.8 | 68.1 | 100 | 25 | 700 | 00401-32 |
