HYDRAULIC 40011 SOCKET WELD HOSE FITTING
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 40011 SOCKET WELD HOSE FITTING
Product Detail

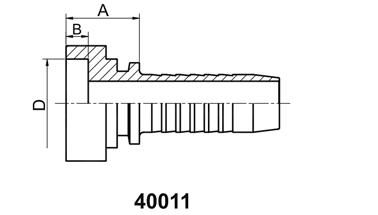

HYDRAULIC 40011 SOCKET WELD HOSE FITTING
| PART NO. | TUBEO.D. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | A | B | ||
| 40011-08-04 | 8 | 6 | 6 | 14.5 | 5 |
| 40011-09-04 | 9 | 6 | 6 | 14.5 | 5 |
| 40011-10-04 | 10 | 6 | 6 | 14.5 | 5 |
| 40011-10-05 | 10 | 8 | 8 | 12.5 | 5 |
| 40011-13-05 | 13 | 8 | 8 | 15 | 5 |
| 40011-15-06 | 15 | 10 | 10 | 15.5 | 5 |
| 40011-16-08 | 16 | 12 | 12 | 14 | 5 |
| 40011-20-08 | 20 | 12 | 12 | 16.5 | 5 |
| 20011-22-10 | 22 | 16 | 16 | 18 | 5 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 40012-XX-XX.
