HYDRAULIC JIC FEMALE 37°SEAT 3J
Product Description
Product Detail
HYDRAULIC JIC FEMALE 37°SEAT 3J
Because
connectors and ports have many applications in fluid piping systems, you need
to correctly identify them before adding or replacing them on a tube or hose,
in your specific application.
Manufacturers use identifiers such as ASME B1 .1 and ISO 261, to classify the
main thread characteristics: pitch, angle, diameter, and form. Some
organizations that are developing these, are the International Organization for
Standardization, SAE International, British Association, and Deutsches Institut
für Normung, and the American Society of Manufacturing Engineers, American
National Standards Institute.
|

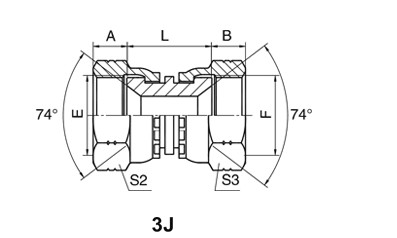

PART NO. |
THREAD |
DIMENSIONS |
|||||
|
E |
F |
A |
B |
L |
S2 |
S3 |
|
|
3J-04 |
7/16"X20 |
7/16"X20 |
9 |
9 |
19 |
15 |
15 |
|
3J-04-05 |
7/16"X20 |
1/2"X20 |
9 |
9.5 |
20.5 |
15 |
17 |
|
3J-04-06 |
7/16"X20 |
9/16"X18 |
9 |
10.5 |
20.5 |
15 |
19 |
|
3J-05 |
1/2"X20 |
1/2"X20 |
9.5 |
9.5 |
21 |
17 |
17 |
|
3J-05-06 |
1/2"X20 |
9/16"X18 |
9.5 |
10.5 |
21 |
17 |
19 |
|
3J-06 |
9/16"X18 |
9/16"X18 |
10.5 |
10.5 |
21 |
19 |
19 |
|
3J-06-08 |
9/16"X18 |
3/4"X16 |
10.5 |
11 |
23 |
19 |
24 |
|
3J-08 |
3/4"X16 |
3/4"X16 |
11 |
11 |
26 |
24 |
24 |
|
3J-08-10 |
3/4"X16 |
7/8"X14 |
11 |
13 |
26.5 |
24 |
27 |
|
3J-08-12 |
3/4"X16 |
1.1/16"X12 |
11 |
15 |
27 |
24 |
32 |
|
3J-10 |
7/8"X14 |
7/8"X14 |
13 |
13 |
27 |
27 |
27 |
|
3J-10-12 |
7/8"X14 |
1.1/16"X12 |
13 |
15 |
28 |
27 |
32 |
|
3J-12 |
1.1/16"X12 |
1.1/16"X12 |
15 |
15 |
29 |
32 |
32 |
|
3J-12-14 |
1.1/16"X12 |
1.3/16"X12 |
15 |
15 |
29 |
32 |
36 |
|
3J-12-16 |
1.1/16"X12 |
1.5/16"X12 |
15 |
16 |
29 |
32 |
41 |
|
3J-16 |
1.5/16"X12 |
1.5/16"X12 |
16 |
16 |
29 |
41 |
41 |
|
3J-20 |
1.5/8"X12 |
1.5/8"X12 |
17 |
17 |
33 |
50 |
50 |
|
3J-24 |
1.7/8"X12 |
1.7/8"X12 |
20 |
20 |
35.5 |
55 |
55 |
|
3J-32 |
2.1/2"X12 |
2.1/2"X12 |
23.5 |
23.5 |
37 |
75 |
75 |
Product Details
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
Deliver,Shipping And Serving
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
