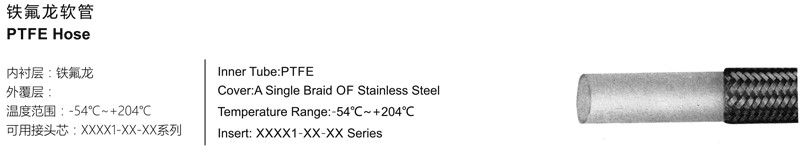

HYDRAULIC 3 PTFE Hose
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 3 PTFE Hose
Product Detail
HYDRAULIC 3 PTFE Hose
| HOSE | HOSE I.D. | HOSEO.D. | MIN.BURST PRESSURE | MAX W.P. | MIN.BEND. RAD. | FERRULE |
| PART NO. | mm | mm | MPa | MPa | mm | |
| 3051 | 5.1 | 8 | 79.3 | 26.4 | 63 | 00TF0-03 |
| 3067 | 6.7 | 9 | 67.2 | 22.4 | 76 | 00TF0-04 |
| 3084 | 8.4 | 11 | 62.1 | 20.7 | 101 | 00TF0-05 |
| 1106 | 9.5 | 12.5 | 69.0 | 23.0 | 127 | 00TF0-06 |
| 3134 | 13.4 | 16.5 | 48.3 | 16.1 | 152 | 00TF0-08 |
| 3166 | 16.6 | 20 | 34.5 | 11.0 | 178 | 00TF0-10 |
| 3198 | 19.8 | 23 | 31.0 | 10.3 | 203 | 00TF0-12 |
| 3261 | 26.1 | 29.5 | 24.1 | 8.0 | 305 | 00TF0-16 |
