HYDRAULIC 29693-W 90°JIS GAS FEMALE 60°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 29693-W 90°JIS GAS FEMALE 60°CONE SEAT
Product Detail

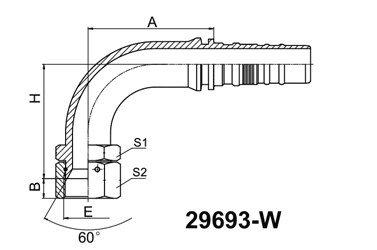

HYDRAULIC 29693-W 90°JIS GAS FEMALE 60°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | H | B | S1 | S2 | ||
| 29693-12-12W | G3/4"X14 | 20 | 12 | 73.8 | 75 | 13.5 | 32 | 32 |
| 29693-16-16W | G1"X11 | 25 | 16 | 88.9 | 83.5 | 16 | 41 | 41 |
| 29693-20-20W | G1.1/4.X11 | 32 | 20 | 105.8 | 96.5 | 18.5 | 50 | 50 |
| 29693-24-24W | G1.1/2.X11 | 40 | 24 | 124.2 | 110.5 | 19 | 55 | 55 |
| 29693-32-32W | G2"X11 | 50 | 32 | 150.3 | 133.8 | 23 | 70 | 70 |
