HYDRAULIC 29641 45° JIS GAS FEMALE 60° CONE SEAT (JIS B8363)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 29641 45° JIS GAS FEMALE 60° CONE SEAT (JIS B8363)
Product Detail
HYDRAULIC 29641 45° JIS GAS FEMALE 60° CONE SEAT (JIS B8363)

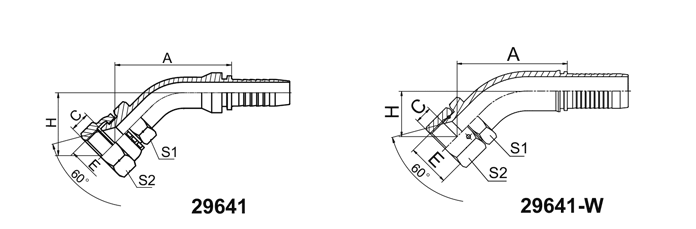

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 29641-04-04 | G1/4"X19 | 6 | 04 | 43.4 | 8 | 21.3 | 19 | 19 |
| 29641-06-06 | G3/8"X19 | 10 | 06 | 48.9 | 9 | 24.6 | 22 | 22 |
| 29641-08-08 | G1/2"X14 | 12 | 08 | 62.5 | 12 | 27.5 | 27 | 27 |
| 29641-12-12 | G3/4"X14 | 20 | 12 | 81.3 | 13.5 | 33.9 | 32 | 32 |
| 29641-16-16 | G1"X11 | 25 | 16 | 87.3 | 16 | 36 | 41 | 41 |
| 29641-20-20W | G1.1/4"X11 | 32 | 20 | 107.3 | 18.5 | 46.5 | 50 | 50 |
| 29641-24-24W | G1.1/2-X11 | 40 | 24 | 122.8 | 19 | 50.8 | 55 | 55 |
| 29641-32-32W | G2"X11 | 50 | 32 | 143 | 23 | 60 | 70 | 70 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 29642-XX-XX.
