HYDRAULIC 29613-W JIS GAS FEMALE 60°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 29613-W JIS GAS FEMALE 60°CONE SEAT
Product Detail

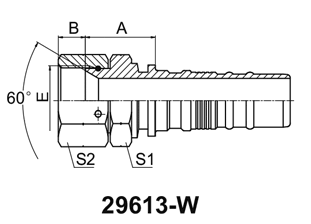

HYDRAULIC 29613-W JIS GAS FEMALE 60°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | B | S1 | S2 | ||
| 29613-12-12W | G3/4"X14 | 20 | 12 | 40 | 13.5 | 32 | 32 |
| 29613-16-16W | G1"X11 | 25 | 16 | 44.4 | 16 | 41 | 41 |
| 29613-20-20W | G1.1/4.X11 | 32 | 20 | 48.8 | 18.5 | 50 | 50 |
| 29613-24-24W | G1.1/2.X11 | 40 | 24 | 49.2 | 19 | 55 | 55 |
| 29613-32-32W | G2.X11 | 50 | 32 | 52 | 23 | 70 | 70 |
