HYDRAULIC 28641 45°JIS METRIC FEMALE 60°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 28641 45°JIS METRIC FEMALE 60°CONE SEAT
Product Detail

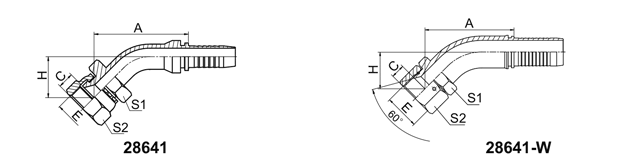

HYDRAULIC 28641 45°JIS METRIC FEMALE 60°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 28641-14-04 | M14X1.5 | 6 | 04 | 43.4 | 10.5 | 21.3 | 19 | 19 |
| 28641-16-05 | M16X1.5 | 8 | 05 | 47.6 | 10 | 24.3 | 22 | 22 |
| 28641-18-06 | M18X1.5 | 10 | 06 | 49.2 | 11.5 | 24.9 | 24 | 24 |
| 28641-22-08 | M22X1.5 | 12 | 08 | 62.1 | 14 | 27.2 | 27 | 27 |
| 28641-24-10 | M24X1.5 | 16 | 10 | 74.7 | 15 | 29.9 | 32 | 32 |
| 28641-30-12 | M30X1.5 | 20 | 12 | 80.9 | 18.3 | 33.5 | 36 | 36 |
| 28641-33-16 | M33X1.5 | 25 | 16 | 89.9 | 21.3 | 35.7 | 41 | 41 |
| 28641-36-20 | M36X1.5 | 32 | 20 | 104.1 | 20 | 41-9 | 46 | 46 |
| 28641-42-24W | M42X1.5 | 40 | 24 | 116.2 | 18.8 | 45.5 | 50 | 55 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 28642-XX-XX.
