HYDRAULIC 27898D-R5 90°SAE FEMALE 90°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 27898D-R5 90°SAE FEMALE 90°CONE SEAT
Product Detail

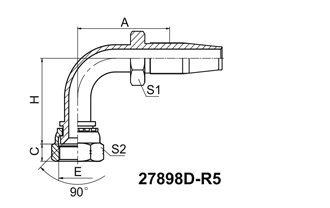

HYDRAULIC 27898D-R5 90°SAE FEMALE 90°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 27898D-06-06(R5) | 5/8"X18 | 10 | 06 | 44.8 | 11.3 | 40.8 | 17 | 22 |
| 27898D-08-08(R5) | 3/4"X16 | 12 | 08 | 53 | 10.5 | 47.5 | 19 | 24 |
