HYDRAULIC 27818-R5T SAE FEMALE 90°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 27818-R5T SAE FEMALE 90°CONE SEAT
Product Detail
HYDRAULIC 27818-R5T SAE FEMALE 90°CONE SEAT

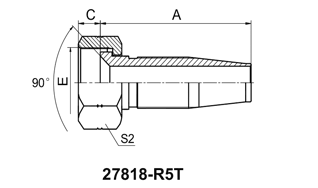

| 代号 | THREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | C | S2 | ||
| 27818-04-04(R5T) | 7/16X20 | 5 | 04 | 9 | 15 |
| 27818-05-05(R5T) | 1/2"X20 | 6 | 05 | 9 | 17 |
| 27818-06-06(R5T) | 5/8"X18 | 8 | 06 | 11.3 | 22 |
| 27818-08-08(R5T) | 3/4"X16 | 11 | 08 | 10.5 | 24 |
| 27818-10-10(R5T) | 7/8"X14 | 13 | 10 | 12 | 27 |
| 27818-12-12(R5T) | 1.1/16"X14 | 16 | 12 | 14.3 | 32 |
