HYDRAULIC 27811-PO SAE FEMALE 90°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 27811-PO SAE FEMALE 90°CONE SEAT
Product Detail

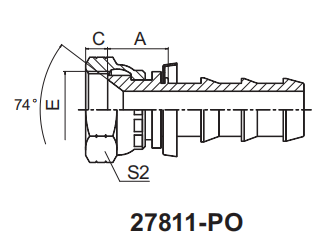

HYDRAULIC 27811-PO SAE FEMALE 90°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 27811-04-04PO | 7/16"X20 | 6 | 04 | 12.2 | 9 | 15 |
| 27811-05-04PO | 1/2"X20 | 6 | 04 | 13.7 | 9.5 | 17 |
| 27811-06-04PO | 5/8"X18 | 6 | 04 | 13.7 | 11.3 | 22 |
| 27811-06-06PO | 5/8"X18 | 10 | 06 | 13.7 | 11.3 | 22 |
| 27811-08-06PO | 3/4"X16 | 10 | 06 | 14.7 | 11 | 24 |
| 27811-08-08PO | 3/4-X16 | 12 | 08 | 14.7 | 11 | 24 |
| 27811-10-08PO | 7/8"X14 | 12 | 08 | 15.2 | 13 | 27 |
| 27811-12-12PO | 1.1/16"X12 | 20 | 12 | 16.9 | 14.3 | 32 |
