HYDRAULIC 26793-W 90°JIC FEMALE 74°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26793-W 90°JIC FEMALE 74°CONE SEAT
Product Detail

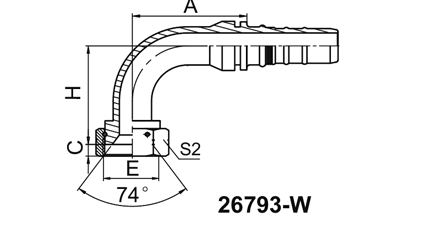

HYDRAULIC 26793-W 90°JIC FEMALE 74°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 26793-12-12W | 1.1/16"X12 | 20 | 12 | 73.8 | 15 | 64.5 | 32 |
| 26793-16-16W | 1.5/16"X12 | 25 | 16 | 88.9 | 16 | 725 | 41 |
| 26793-20-20W | 1.5/8"X11 | 32 | 20 | 105.8 | 17 | 81.5 | 50 |
| 26793-24-24W | 1.7/8"X12 | 40 | 24 | 124.2 | 20 | 101 | 55 |
| 26793-32-32W | 2.1/2"X12 | 50 | 32 | 150.3 | 23.5 | 121.3 | 75 |
