HYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514
Product Detail
HYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514

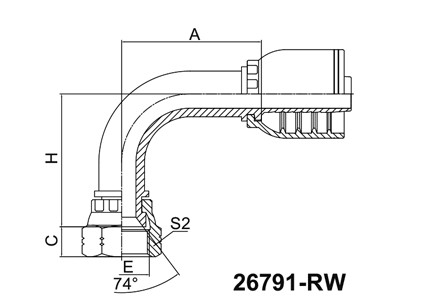

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 26791-04-03 RW | 7/16"X20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 RW | 7/16"X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 26791-05-04 RW | 1/2"X20 | 6 | 04 | 30 | 9.5 | 34 | 17 |
| 26791-05-05RW | 1/2"X20 | 8 | 05 | 33 | 9.5 | 37 | 17 |
| 26791-05-06 RW | 1/2"X20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 RW | 9/16"X18 | 6 | 04 | 30 | 10.5 | 34 | 19 |
| 26791-06-05RW | 9/16"X18 | 8 | 05 | 33 | 10.5 | 37 | 19 |
| 26791-06-06RW | 9/16"X18 | 10 | 06 | 35.3 | 10.5 | 39.3 | 19 |
| 26791-06-08RW | 9/16"X18 | 12 | 08 | 41 | 10.5 | 45.5 | 19 |
| 26791-08-06RW | 3/4"X16 | 10 | 06 | 35.3 | 11 | 41.3 | 24 |
| 26791-08-08RW | 3/4"X16 | 12 | 08 | 41 | 11 | 47 | 24 |
| 26791-08-10RW | 3/4"X16 | 16 | 10 | 56.5 | 11 | 51.5 | 24 |
| 26791-10-08RW | 7/8"X14 | 12 | 08 | 41 | 13 | 48 | 27 |
| 26791-10-10RW | 7/8"X14 | 16 | 10 | 56.5 | 13 | 52.5 | 27 |
| 26791-10-12RW | 7/8"X14 | 20 | 12 | 67 | 13 | 64 | 27 |
| 26791-12-08RW | 1.1/16"X12 | 12 | 08 | 41 | 15 | 49.5 | 32 |
| 26791-12-10RW | 1.1/16"X12 | 16 | 10 | 56.5 | 15 | 54 | 32 |
| 26791-12-12RW | 1.1/16"X12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 |
| 26791-12-16RW | 1.1/16"X12 | 25 | 16 | 76.7 | 15 | 70 | 32 |
| 26791-14-12RW | 1.3/16"X12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 |
| 26791-16-12RW | 1.5/16"X12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16RW | 1.5/16"X12 | 25 | 16 | 76.7 | 16 | 70 | 41 |
| 26791-16-20 RW | 1.5/16"X12 | 32 | 20 | 91.5 | 16 | 81 | 41 |
| 26791-20-20WRW | 1.5/8"X12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20WRW | 1.7/8"X12 | 32 | 20 | 91.5 | 20 | 79.5 | 55 |
| 26791-24-24WRW | 1.7/8"X12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32WRW | 2.1/2"X12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
NOTE:
1.For use with braided hoses.
2.If with spiral hoses,hose fitting series number is 26792-XX-XXRW.
