HYDRAULIC 26741-RW 45° JIC FEMALE 74° CONE SEAT SAE J514
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26741-RW 45° JIC FEMALE 74° CONE SEAT SAE J514
Product Detail

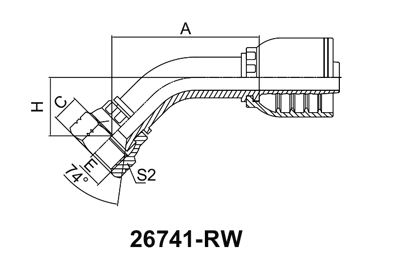

HYDRAULIC 26741-RW 45° JIC FEMALE 74° CONE SEAT SAE J514
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 26741-04-03RW | 7/16"X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 26741-04-04RW | 7/16"X20 | 6 | 04 | 40.2 | 9 | 18.1 | 15 |
| 26741-05-04RW | 1/2"X20 | 6 | 04 | 40.5 | 9.5 | 18.5 | 17 |
| 26741-05-05RW | 1/2"X20 | 8 | 05 | 42.7 | 9.5 | 19.3 | 17 |
| 26741-05-06RW | 1/2"X20 | 10 | 06 | 44.6 | 9.5 | 20.3 | 17 |
| 26741-06-04RW | 9/16"X18 | 6 | 04 | 40.5 | 10.5 | 18.5 | 19 |
| 26741-06-05RW | 9/16"X18 | 8 | 05 | 42.7 | 10.5 | 19.3 | 19 |
| 26741-06-06RW | 9/16"X18 | 10 | 06 | 44.3 | 10.5 | 20 | 19 |
| 26741-06-08RW | 9/16"X18 | 12 | 08 | 56.8 | 10.5 | 21.9 | 19 |
| 26741-08-06RW | 3/4"X16 | 10 | 06 | 45.7 | 11 | 214 | 24 |
| 26741-08-08RW | 3/4"X16 | 12 | 08 | 58.6 | 11 | 23.5 | 24 |
| 26741-10-08RW | 7/8"X14 | 12 | 08 | 58.9 | 13 | 24 | 27 |
| 26741-10-10RW | 7/8"X14 | 16 | i〇 | 70.1 | 13 | 25.3 | 27 |
| 26741-10-12RW | 7/8"X14 | 20 | 12 | 77 | 13 | 28.9 | 27 |
| 26741-12-08RW | 1.1/16"X12 | 12 | 08 | 60 | 15 | 25 | 32 |
| 26741-12-1 ORW | 1.1/16"X12 | 16 | 10 | 71.2 | 15 | 26.4 | 32 |
| 26741-12-12RW | 1.1/16"X12 | 20 | 12 | 77.4 | 15 | 30 | 32 |
| 26741-12-16RW | 1.1/16"X12 | 25 | 16 | 85.3 | 15 | 31 | 32 |
| 26741-14-12RW | 1.3/16"X12 | 20 | 12 | 77.4 | 15 | 30 | 36 |
| 26741-16-12RW | 1.5/16"X12 | 20 | 12 | 77.4 | 16 | 30 | 41 |
| 26741-16-16RW | 1.5/16"X12 | 25 | 16 | 85.7 | 16 | 31.5 | 41 |
| 26741-16-20RW | 1.5/16"X12 | 32 | 20 | 96.3 | 16 | 35.5 | 41 |
| 26741-20-20WRW | 1.5/8"X12 | 32 | 20 | 96.6 | 17 | 35.9 | 50 |
| 26741-24-20WRW | 1.7/8"X12 | 32 | 20 | 100.8 | 20 | 40.1 | 55 |
| 26741-24-24WRW | 1.7/8"X12 | 40 | 24 | 114.8 | 20 | 44.1 | 55 |
| 26741-32-32WRW | 2.1/2"X12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 |
NOTE:
1. For use with braided hoses.
2. If with spiral hoses,hose fitting series number is 26742-XX-XXRW.
