HYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT
Product Detail

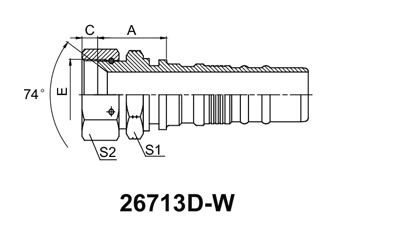

HYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 26713D-12-12W | 1.1/16.X12 | 20 | 12 | 37.5 | 15 | 30 | 32 |
| 26713D-16-16W | 1.5/16.X12 | 25 | 16 | 42.4 | 16 | 38 | 41 |
| 26713D-20-20W | 1.5/8"X12 | 32 | 20 | 47.3 | 17 | 46 | 50 |
| 26713D-24-24W | 1.7/8"X12 | 40 | 24 | 50.2 | 20 | 50 | 60 |
| 26713D-32-32W | 2.1/2"X12 | 50 | 32 | 52 | 23.5 | 65 | 75 |
