HYDRAULIC 26711D-SM JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26711D-SM JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)
Product Detail

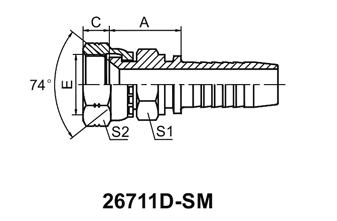

HYDRAULIC 26711D-SM JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 26711 D-04-04SM | 7/16"X20 | 6 | 04 | 20 | 9 | 12 | 15 |
| 26711 D-05-04SM | 1/2"X20 | 6 | 04 | 20.5 | 9.5 | 12 | 17 |
| 26711 D-06-04SM | 9/16"X18 | 6 | 04 | 21 | 10.5 | 14 | 19 |
| 26711 D-06-06SM | 9/16"X18 | 10 | 06 | 21 | 10.5 | 17 | 19 |
| 26711 D-08-06SM | 3/4"X16 | 10 | 06 | 23 | 11 | 19 | 24 |
| 26711 D-08-08SM | 3/4"X16 | 12 | 08 | 24.5 | 11 | 22 | 24 |
| 26711D-08-10SM | 3/4-X16 | 16 | 10 | 25.5 | 11 | 22 | 24 |
| 26711D-10-08SM | 7/8"X14 | 12 | 08 | 24 | 13 | 22 | 27 |
| 26711D-10-10SM | 7/8"X14 | 16 | 10 | 27 | 13 | 22 | 27 |
| 26711 D-12-12SM | 1.1/16"X12 | 20 | 12 | 31.5 | 15 | 27 | 32 |
| 26711D-16-12SM | 1.5/16"X12 | 20 | 12 | 31.5 | 16 | 32 | 41 |
| 26711D-16-16SM | 1.5/16"X12 | 25 | 16 | 32.5 | 16 | 32 | 41 |
| 26711 D-20-20SM | 1.7/16"X12 | 32 | 20 | 37 | 17 | 41 | 50 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 26712D-XX-XXSM.
