HYDRAULIC 24293-W 90°ORFS FEMALE FLAT SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 24293-W 90°ORFS FEMALE FLAT SEAT
Product Detail

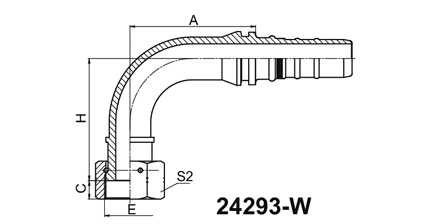

HYDRAULIC 24293-W 90°ORFS FEMALE FLAT SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 24293-12-12W | 1.3/16"X12 | 20 | 12 | 73.8 | 15 | 80.5 | 36 |
| 24293-16-16W | 1.7/16"X12 | 25 | 16 | 88.9 | 15 | 88.5 | 41 |
| 24293-20-20W | 1.11/16"X12 | 32 | 20 | 105.8 | 15 | 100 | 50 |
| 24293-24-24W | 2"X12 | 40 | 24 | 123.2 | 148 | 114.5 | 60 |
