HYDRAULIC 24218D-R5 ORFS FEMALE FLAT SEAT DOUBLE HEXAGON
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 24218D-R5 ORFS FEMALE FLAT SEAT DOUBLE HEXAGON
Product Detail

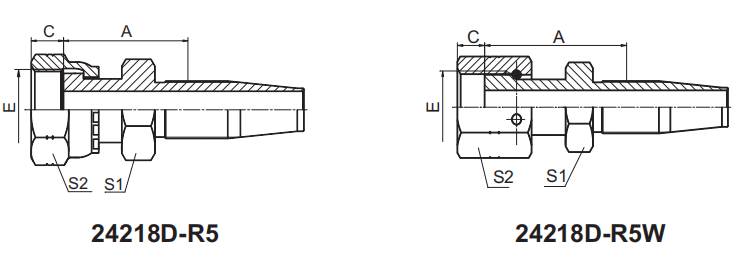

HYDRAULIC 24218D-R5 ORFS FEMALE FLAT SEAT DOUBLE HEXAGON
| PART NO. | THREAD E | HOSE DASH | DIMENSIONS | ||
| C | S1 | S2 | |||
| 24218D-04-04(R5) | 9/16"X18 | 04 | 8.5 | 14 | 19 |
| 24218D-04-05(R5) | 9/16"X18 | 05 | 8.5 | 14 | 19 |
| 24218D-06-06(R5) | 11/16"X16 | 06 | 10 | 17 | 22 |
| 24218D-08-08(R5) | 13/16"X16 | 08 | 11 | 19 | 27 |
| 24218D-10-10(R5) | 1"X14 | 10 | 13.5 | 24 | 30 |
| 24218D-12-12(R5) | 1.3/16"X12 | 12 | 15 | 30 | 36 |
| 24218D-16-16(R5) | 1.7/16"X12 | 16 | 15 | 36 | 41 |
| 24218D-20-20(R5)W | 1.11/16"X12 | 20 | 15 | 41 | 50 |
| 24218D-24-24(R5)W | 2"X12 | 24 | 16 | 50 | 60 |
