HYDRAULIC 22693-W 90°BSP FEMALE 60°CONE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22693-W 90°BSP FEMALE 60°CONE
Product Detail
HYDRAULIC 22693-W 90°BSP FEMALE 60°CONE

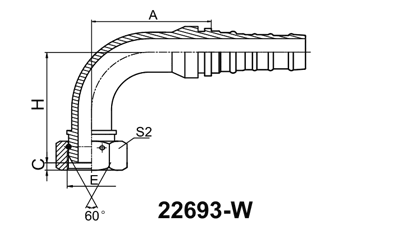

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 22693-12-12W | G3/4"X14 | 20 | 12 | 73.8 | 10.9 | 67.1 | 32 |
| 22693-16-16W | G1"X11 | 25 | 16 | 91.9 | 11.7 | 72 | 41 |
| 22693-20-20W | G1.1/4-X11 | 32 | 20 | 105.8 | 11.0 | 88.3 | 50 |
| 22693-24-24W | G1.1/2-X11 | 40 | 24 | 124.2 | 13.5 | 103 | 55 |
| 22693-32-32W | G2"X11 | 50 | 32 | 148.8 | 16 | 123.3 | 70 |
