HYDRAULIC 22691D-SM 90°BSP FEMALE 60°CONE DOUBLE HEXAGON
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22691D-SM 90°BSP FEMALE 60°CONE DOUBLE HEXAGON
Product Detail

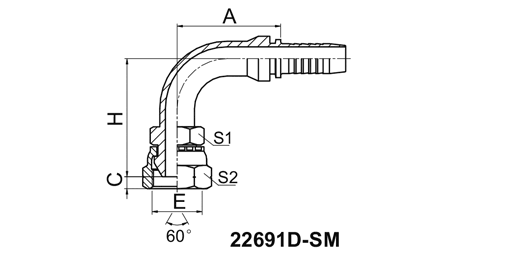

HYDRAULIC 22691D-SM 90°BSP FEMALE 60°CONE DOUBLE HEXAGON
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 22691D-04-04SM | G1/4"X19 | 6 | 04 | 30 | 5.5 | 40.5 | 14 | 19 |
| 22691D-06-06SM | G3/8"X19 | 10 | 06 | 35.3 | 6.3 | 49 | 17 | 22 |
| 22691D-08-08SM | G1/2"X14 | 12 | 08 | 41 | 7.5 | 58 | 22 | 27 |
| 22691D-10-08SM | G5/8"X14 | 12 | 08 | 41 | 9.5 | 58 | 22 | 30 |
| 22691D-12-08SM | G3/4"X14 | 12 | 08 | 41.5 | 10.9 | 58 | 27 | 32 |
| 22691D-12-12SM | G3/4"X14 | 20 | 12 | 65.5 | 10.9 | 74 | 27 | 32 |
| 22691D-16-16SM | G1"X11 | 25 | 16 | 76.7 | 11.7 | 82.8 | 32 | 41 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 22692D-XX-XX
