HYDRAULIC 22611-PO BSP FEMALE 60°CONE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22611-PO BSP FEMALE 60°CONE
Product Detail

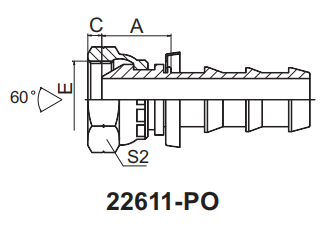

HYDRAULIC 22611-PO BSP FEMALE 60°CONE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 22611-04-04PO | G1/4"X19 | 6 | 04 | 19.5 | 5.5 | 19 |
| 22611-06-06PO | G3/8"X19 | 10 | 06 | 24.5 | 6.3 | 22 |
| 22611-08-08PO | G1/2"X14 | 12 | 08 | 24.5 | 7.5 | 27 |
| 22611-12-12PO | G3/4"X14 | 20 | 12 | 29 | 10.9 | 32 |
