HYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON
Product Detail

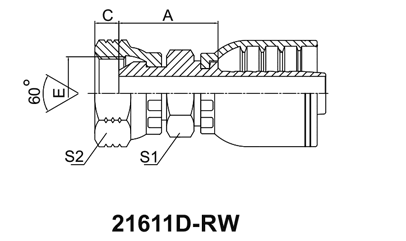

HYDRAULIC 21611D-RW NPSM FEMALE60°CONE DOUBLE HEXAGON
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 21611D-04-04RW | 1/4"X19 NPSM | 6 | 04 | 23 | 5.5 | 14 | 19 |
| 21611D-06-06RW | 3/8"X19 NPSM | 10 | 06 | 25 | 6.3 | 17 | 22 |
| 21611D-08-08RW | 1/2"X14 NPSM | 12 | 08 | 28.5 | 7.5 | 22 | 27 |
| 21611D-10-08RW | 5/8"X14 NPSM | 12 | 08 | 30 | 9.5 | 22 | 30 |
| 21611D-12-08RW | 3/4"X14 NPSM | 12 | 08 | 32.1 | 10.9 | 27 | 32 |
| 21611D-12-12RW | 3/4"X14 NPSM | 20 | 12 | 32.5 | 10.9 | 27 | 32 |
| 21611D-16-16RW | 1"X11 NPSM | 25 | 16 | 36.3 | 11.7 | 32 | 41 |
| 21611D-20-20RW | 1.1/4"X11 NPSM | 32 | 20 | 41.5 | 11 | 41 | 50 |
NOTE:
1.For use with braided hoses.
2.If with spiral hoses,hose fitting series number is 21612D-XX-XXRW.
