HYDRAULIC 20593-T 90°METRIC FEMALE 24°CONE O-RING H.T.
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20593-T 90°METRIC FEMALE 24°CONE O-RING H.T.
Product Detail

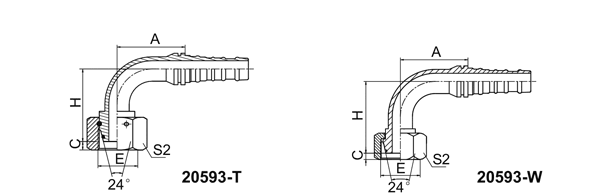

HYDRAULIC 20593-T 90°METRIC FEMALE 24°CONE O-RING H.T.
| PART NO. | THREAD E | HOSE BORE | TUBEO.D. | ORING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20593-36-12T | M36X2 | 20 | 12 | 25 | 020.3X2.4 | 74.5 | 3.2 | 67.8 | 46 |
| 20593-36-16W | M36X2 | 25 | 16 | 25 | 020.3X2.4 | 88.9 | 3.2 | 79.5 | 46 |
| 20593-42-16W | M42X2 | 25 | 16 | 30 | 025.3X2.4 | 88.9 | 5 | 80.5 | 50 |
| 20593-42-20W | M42X2 | 32 | 20 | 30 | 025.3X2.4 | 105.8 | 5 | 91.5 | 50 |
| 20593-52-20T | M52X2 | 32 | 20 | 38 | 033.3X2.4 | 105.8 | 6.5 | 86.5 | 60 |
| 20593-52-24W | M52X2 | 40 | 24 | 38 | 033.3X2.4 | 124.2 | 6-5 | 104.5 | 60 |
