HYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)
Product Detail

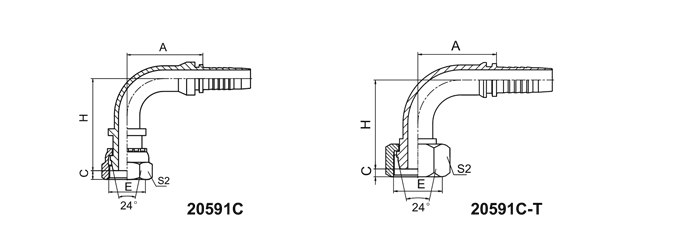

HYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)
| PART NO. | THREAD E | HOSE BORE | 管子外径 | DIMENSIONS | ||||
| DN | DASH | TUBEO.D. | A | C | H | S2 | ||
| 20591C-16-04 | M16X1.5 | 6 | 04 | 8 | 30 | 3 | 40 | 22 |
| 20591C-18-04T | M18X1.5 | 6 | 04 | 10 | 30 | 3 | 38.5 | 22 |
| 20591C-20-05T | M20X1.5 | 8 | 05 | 12 | 33 | 4.5 | 42 | 24 |
| 20591C-20-06T | M20X1.5 | 10 | 06 | 12 | 35.3 | 45 | 45-7 | 24 |
| 20591C-22-06T | M22X1.5 | 10 | 06 | 14 | 35.3 | 4.5 | 44.7 | 27 |
| 20591C-24-08T | M24X1.5 | 12 | 08 | 16 | 41 | 5 | 52 | 30 |
| 20591C-30-10T | M30X2 | 16 | 10 | 20 | 56.5 | 7 | 56.5 | 36 |
| 20591C-36-12T | M36X2 | 20 | 12 | 25 | 65.5 | 6-5 | 66.5 | 41 |
| 20591C-42-16T | M42X2 | 25 | 16 | 30 | 78 | 9 | 73.5 | 50 |
| 20591C-52-20T | M52X2 | 32 | 20 | 38 | 93 | 8 | 87.5 | 60 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 20592C-XX-XX.
